Basic Principles Of Modding

How Does Modding Space Marine 2 Work?

When it comes to modding Space Marine 2, no programming is required. A strong understanding of computer science principles will help, but getting started is straightforward even for complete beginners. This wiki is designed to make the process even easier to understand.

Space Marine 2's modding system does not allow direct editing of the game's compiled code. Instead, it allows us to modify text-based configuration files that the game’s code references. While this may seem like a limitation, you would be surprised at how much can still be accomplished through text editing.

How Does Space Marine 2's File System Work?

Space Marine 2 uses a data format known as a PAK file to store all its assets, including models, textures, and audio. PAK files are compressed archives using the standard ZIP compression method. You can open Space Marine 2's PAK files using WinRAR or 7-Zip.

File Structure

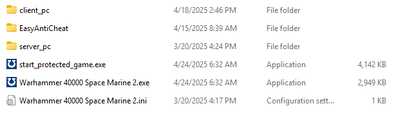

SM2 Directory

Inside the Space Marine 2 directory, you will find three folders, two executable files, and one INI configuration file. - The EXE files launch the game. - The INI file contains settings related to the game executables. - The folders contain all the game data.

The folder named EasyAntiCheat should be avoided. Tampering with anti-cheat files may cause serious issues. The folders modders are permitted to explore are client_pc and server_pc. These contain all client and server-side data for the game, much of which is described in this wiki.

Virtual File System

Space Marine 2 uses a Virtual File System (VFS) to manage asset loading. Mods override vanilla files using the VFS by supplying altered versions of the same files. Since Space Marine 2 does not use Delta Patching, mods must replace the entire file rather than patching only parts of one.

PAK Files

Between client_pc and server_pc, there are over 150 PAK files combined. These store nearly all game data, allowing wide flexibility in modding the game's appearance, sounds, and behavior.

Default PAKs

Space Marine 2 organizes core data into "Default PAKs": - Client-side assets are found in client default PAKs. - Server-side assets are found in server default PAKs.

You can locate them at: - client_pc\root\paks\client\default - server_pc\root\paks\server\default

Default_Other.pak

default_other.pak is one of the most important PAK files. It contains: - Game parameters - Descriptions - Definitions - AI logic - Server scenarios

These are stored as text files written in Property Section format.

Both client_pc and server_pc have their own versions of default_other.pak. If a file exists in both locations, the two copies must be identical to avoid crashes and desyncs.

Default_SSL.pak

This PAK contains the game's compiled scripts, written in Saber Interactive’s proprietary Saber Scripting Language (SSL). Scripts are compiled into sslbin files.

Editing SSL files is not supported and explicitly forbidden. Tampering with them can cause major game issues and is strongly discouraged.

Default_PCT PAKs

Files like default_pct_0.pak to default_pct_31.pak contain all game textures (PCT files). Texture editing is possible but more complex than text editing.

Default_TPL PAKs

Files like default_tpl_0.pak to default_tpl_8.pak store all 3D models. Model editing requires specialized knowledge and tools.

Default_TD.pak

This file defines material properties such as metal, dirt, and other surface behaviors. Material editing is considered an advanced topic.

Default_Sound PAKs

The game’s sound files are stored here. Navigating sound assets is challenging because files are numbered rather than named.

A spreadsheet of sound mappings was being developed but is currently outdated.

Cache Files

Each PAK file is paired with a Cache file of the same name. Cache files allow the game to quickly index and load asset data.

Before Update 7.0 (April 2025), modders needed a tool called Pakcacher to manually rebuild Cache files. After Update 7.0, Saber enabled automatic cache handling, and manual intervention is no longer required.

Resource PAKs

Both client and server sides use a resources.pak to manage metadata about asset dependencies and the Resource Tree.

Incorrect edits can severely break the game. For more details, see: Resource_System.

Local Folder

The Local folder is a special area inside client_pc\root designed for development and testing of mods.

What Files Can Go Into a Local Folder?

Any client-side, server-side, or resource file can be placed into the Local folder, provided the folder path structure matches the game’s originals.

How to Use the Local Folder

Treat the Local folder like an unpacked version of default_other.pak. File and folder structures must match the originals exactly.

Files present in both client_pc and server_pc only need one copy in the Local folder. The Virtual File System will correctly map them.

Performance Issues

The Local folder loads more slowly than packed PAK files and may cause performance degradation. It is recommended for development and testing only, not for playing completed mods.

Mods Folder

The Mods folder is meant for distributing and loading finalized mods.

What Goes into the Mods Folder?

Only properly packed .pak files should be placed here. ZIP, RAR, and text files will either be ignored or cause loading failures.

Alphanumerical Load Order (Top to Bottom)

How Does Mod Load Order Work?

Mods are loaded in alphanumerical order. If two mods modify the same file: - The alphabetically first mod will take precedence.

Important Naming Advice

Always use lowercase letters when naming PAK files. Capitalization errors can lead to crashes or broken mods.

Creating a Modpak

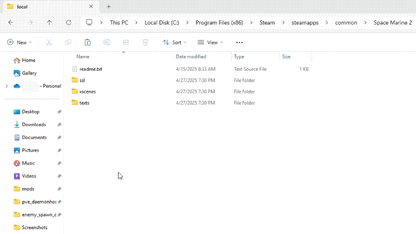

Tutorial GIF: Click or tap to view animation.

To create a Modpak:

1. Build and test your mod inside the Local folder. (See Local Folder)
2. Select all modified folders/files.
3. Right-click and choose "Add to Archive" via WinRAR.
4. Set:

• Archive format: ZIP
• Compression method: Store

Important: Using compression other than Store may cause the game to crash or hang.

Ensure: - The file is named in all lowercase. - The file has a .pak extension.

Place the resulting PAK into the Mods folder for use or distribution.

Local Server

When playing modded, Space Marine 2 uses a local server hosted by the player's machine.

How Do Mods Work on a Local Server?

Hosting a game with mods allows: - Players without the mod to experience some modded content. - However, mismatched or missing mods between players may cause issues.

It is recommended that all players install the same mod set when playing together.

For installation instructions, see How to Install Mods.

This page is incomplete. The Tech Priest(s) responsible have exhausted their memory banks. Please contribute additional information if available.
